Product Details

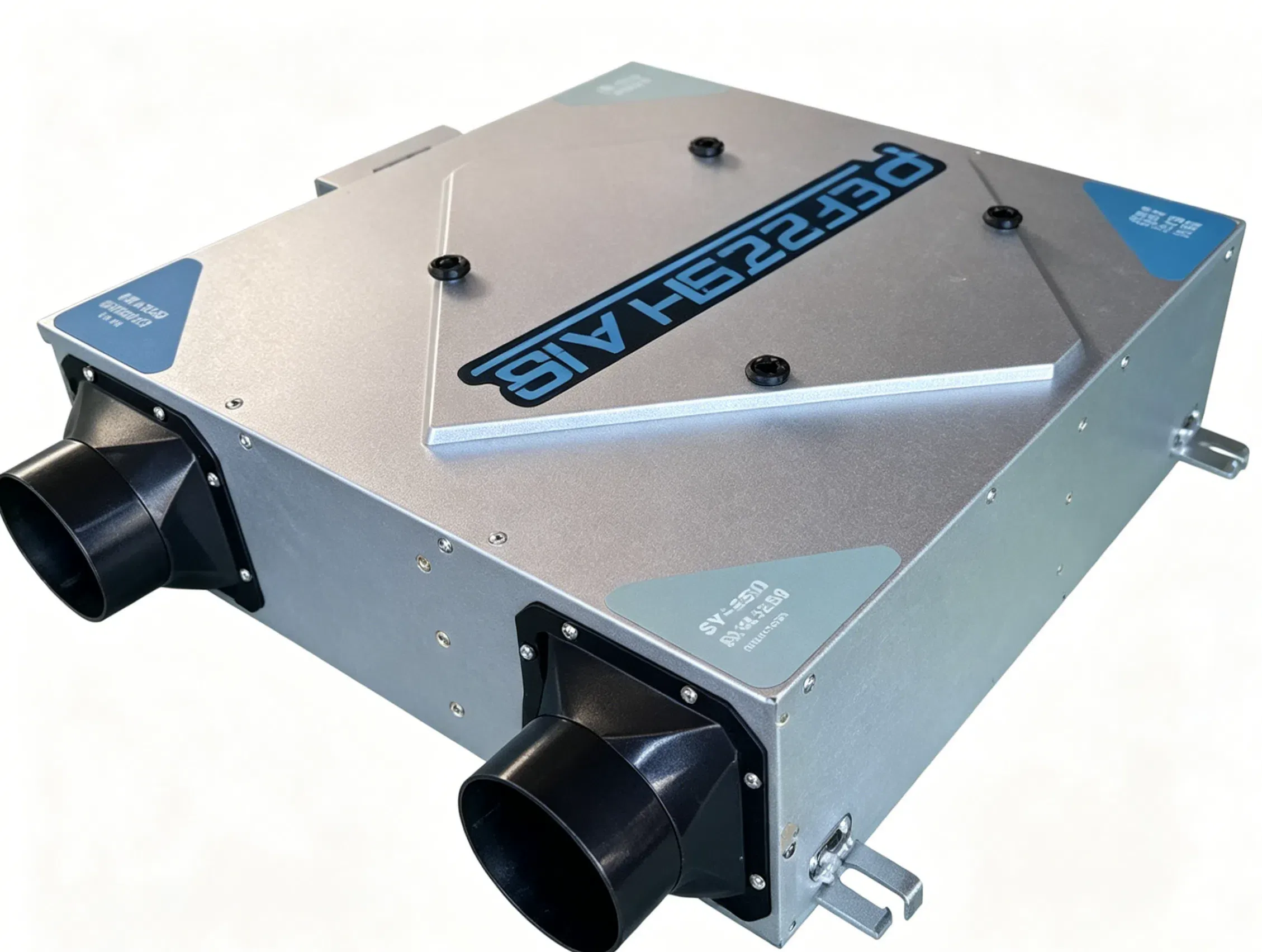

The Residential Heat Recovery Ventilator is designed to provide continuous fresh air ventilation while improving indoor comfort and energy efficiency. Featuring advanced total heat recovery technology, the unit effectively exchanges stale indoor air with filtered fresh outdoor air while recovering cooling and heating energy to reduce energy consumption. With its ultra-slim concealed ceiling design, low-noise operation, and efficient filtration system, it is an ideal solution for creating a healthier, quieter, and more comfortable home environment.

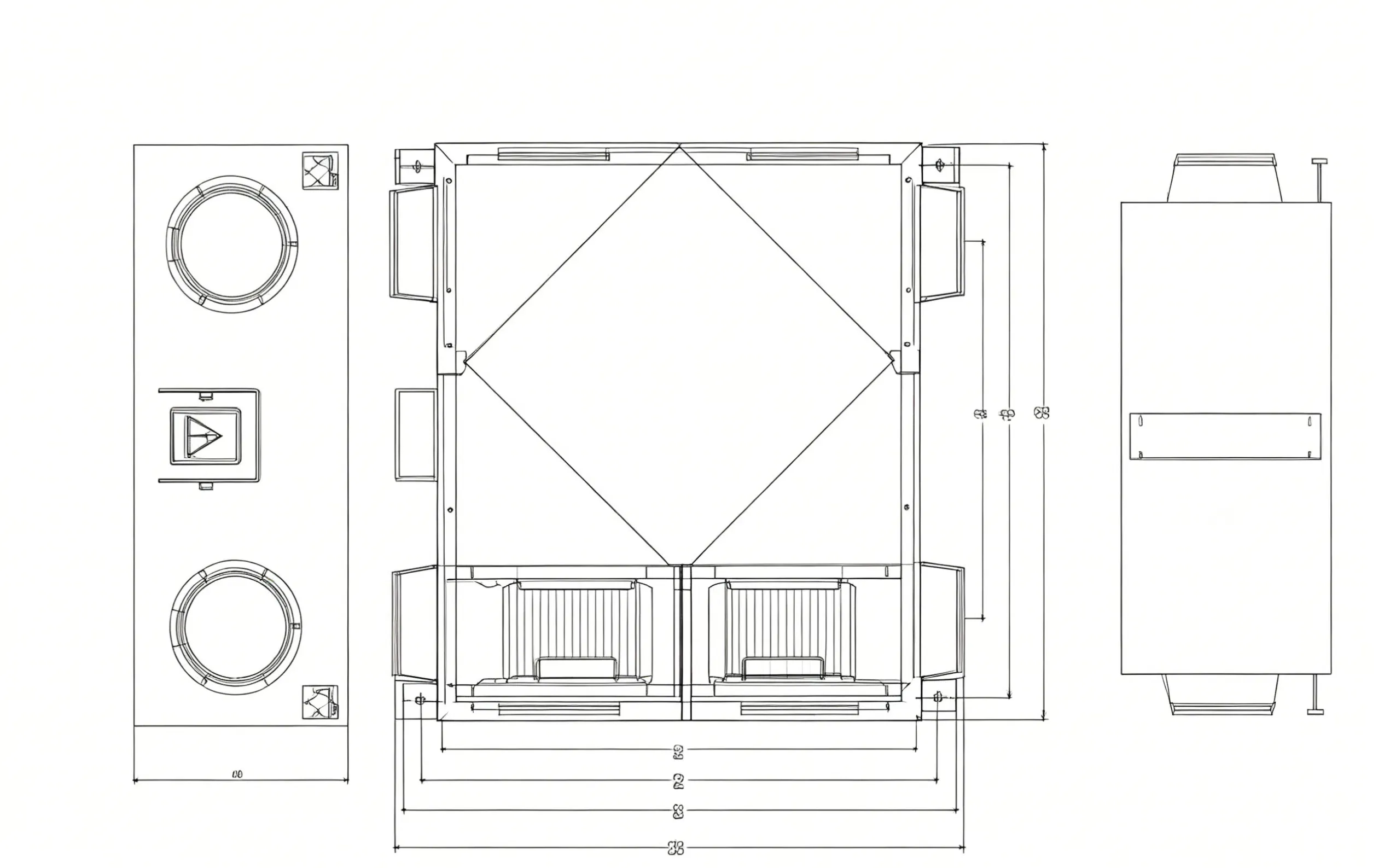

Overall Dimensions Table
| Modle | A | B | C | D | E | F | H | I |
|---|---|---|---|---|---|---|---|---|
| RHQ-150A | 360 | 535 | 405 | 490 | 460 | 310 | 205 | 450 |
| RHQ-250A | 505 | 650 | 550 | 590 | 605 | 430 | 205 | 595 |
| RHQ-350A | 550 | 655 | 595 | 605 | 650 | 450 | 245 | 640 |
| RHQ-500A | 605 | 690 | 650 | 645 | 820 | 450 | 285 | 695 |
Performance Parameters Table
The Residential series (RHQ-A) of balanced fresh air ventilation units is designed for home use, offering four models (150A/250A/350A/500A) with airflow ranging from 150 m³/h to 500 m³/h, covering applicable areas of 30–170 ㎡. Powered by a 220V rated voltage, the units support multi-speed operation, with input power varying from 39W to 190W across different settings.
Noise levels are kept low, ranging from 30–42 dB(A) depending on the model and speed, ensuring quiet operation for living spaces. Static pressure ranges from 30–100 Pa, meeting typical residential duct requirements, while heat recovery rates of 71–75% deliver efficient energy savings. With compact pipe diameters (Φ120/Φ150) and manageable weights of 36–40 kg, these units are suitable for easy installation in most homes, balancing performance, comfort, and energy efficiency.
| Category | Model | Rated Voltage (V) | Input Power (W) | Airflow (m³/h) | Noise dB(A) | Static Pressure (Pa) | Weight (kg) | Pipe Diameter (mm) | Applicable Area (㎡) | Heat Recovery Rate (%) |
| Residential | RHQ-150A | 220 | 56/46/39 | 150/100/80 | 38/33/30 | 100/60/30 | 36 | Φ120 | 30-50 | 71/73/75 |
| RHQ-250A | 220 | 60/46/39 | 250/163/114 | 41/37/33 | 75/50/30 | 38 | Φ150 | 50-90 | 71/73/75 | |
| RHQ-350A | 220 | 90/77/64 | 350/293/275 | 42/39/35 | 100/60/30 | 40 | Φ150 | 90-130 | 71/73/75 | |
| RHQ-500A | 220 | 190/175/150 | 500/450/360 | 42/39/35 | 100/60/30 | 40 | Φ150 | 130-170 | 71/73/75 |
Company Qualifications

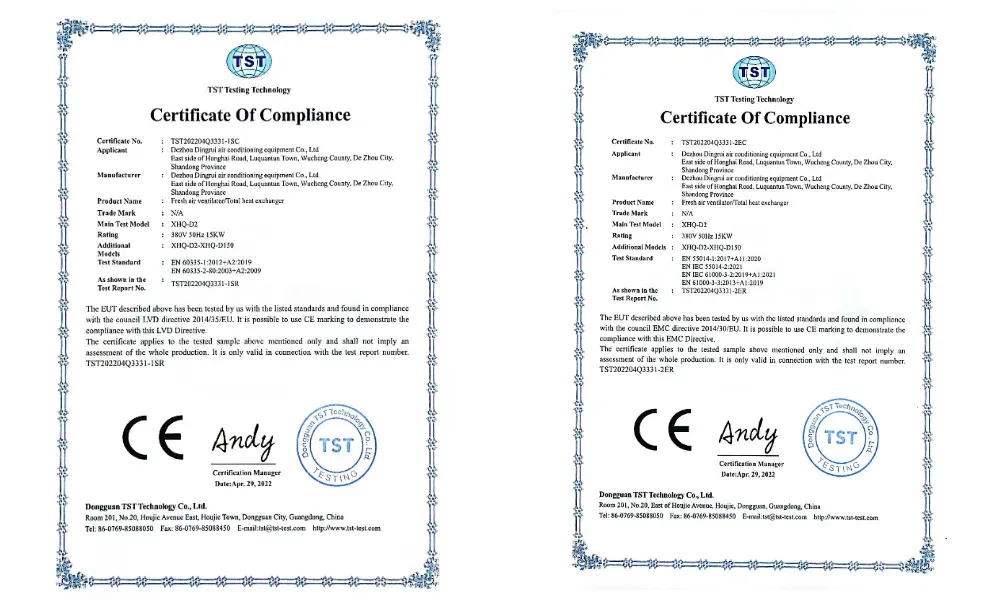

Our products have obtained the authoritative EU CE certification, fully comply with relevant safety standards, and are qualified for export to the EU market. With reliable quality, they are worthy of your trust. Additionally, our products are protected by patents.
