Product Details

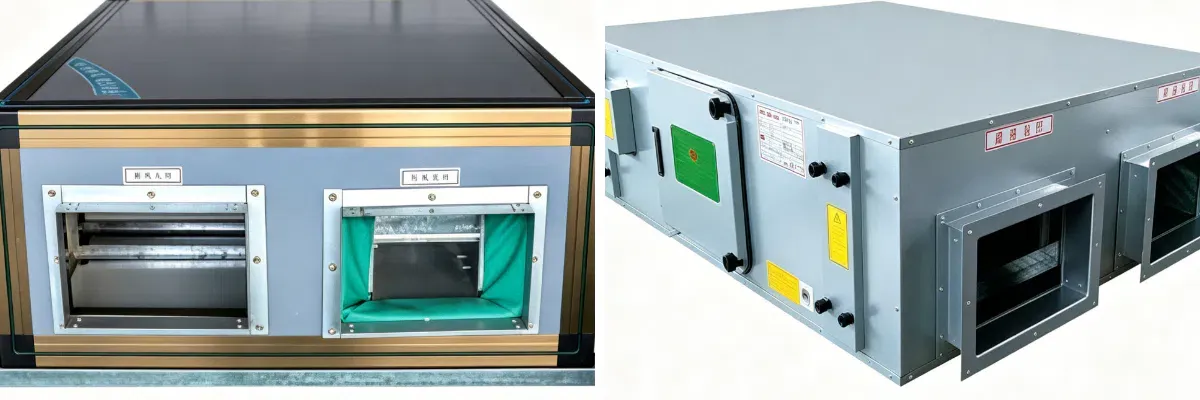

Our commercial large floor-standing total heat exchangers deliver reliable, high-efficiency ventilation for large-scale commercial and public buildings such as malls, hotels, offices, and convention centers. With airflow from 5,000 to 35,000 m³/h and a maximum static pressure of 380Pa, they ensure stable air distribution in complex, multi-branch duct systems, eliminating airflow loss over long distances. A 72% heat recovery rate reduces HVAC energy use by reclaiming exhaust air energy, lowering operational costs year-round.
Powered by 380V three-phase electricity with heavy-duty dual fans, these units support continuous, high-load operation. The floor-standing design saves ceiling space, offering flexible placement in equipment rooms, while standard duct connections (338×400mm to 1520×480mm) ensure compatibility with common commercial ductwork for easy installation. Durable and low-maintenance, they are ideal for large projects needing robust, energy-efficient ventilation.
Performance Parameters Table
Our Commercial Large series of floor-standing total heat exchangers delivers powerful, energy-efficient ventilation tailored for large-scale commercial facilities. Designed to meet the demands of high-capacity environments, the lineup spans airflow rates from 5,000 to 35,000 m³/h, with robust performance parameters that ensure reliable operation even in complex duct systems.
| Category | Model | Rated Voltage (V) | Input Power (W) | Airflow (m³/h) | Noise Level dB(A) | Static Pressure (Pa) | Weight (kg) | Pipe Connection (mm) | Applicable Area (㎡) | Heat Recovery Rate (%) |
| Commercial Large | RHQ-5000A | 380 | 3000 × 2 | 5000 | 65 | 320 | 350 | 338 × 400 | – | 72 |
| RHQ-6000A | 380 | 4000 × 2 | 6000 | 65 | 320 | 420 | 338 × 400 | – | 72 | |
| RHQ-8000A | 380 | 5500 × 2 | 8000 | 68 | 350 | 560 | 400 × 450 | – | 72 | |
| RHQ-10000A | 380 | 7500 × 2 | 10000 | 70 | 350 | 700 | 450 × 400 | – | 72 | |
| RHQ-15000A | 380 | 9000 × 2 | 15000 | 70 | 380 | 1050 | 560 × 480 | – | 72 | |
| RHQ-20000A | 380 | 11000 × 2 | 20000 | 70 | 380 | 1400 | 1270 × 410 | – | 72 | |
| RHQ-35000A | 380 | 15000 × 2 | 35000 | 70 | 380 | 2450 | 1520 × 480 | – | 72 |
Key Technical Advantages
Strong airflow & pressure performance：With static pressure up to 380Pa, these units maintain consistent airflow through long, multi-branch ductwork, eliminating end-of-line attenuation in large buildings. Noise levels are kept between 65–70 dB(A), balancing power with workplace comfort.
Efficient energy recovery：All models feature a stable 72% heat recovery rate, capturing thermal energy from exhaust air to reduce HVAC loads and cut long-term operational costs.
Heavy-duty, continuous operation：Powered by 380V three-phase electricity with dual high-power fans (3,000W to 15,000W each), they support 24/7 high-load operation. The robust build ensures durability, with unit weights ranging from 350kg to 2,450kg.
Flexible installation：Standardized duct connections (338×400mm to 1520×480mm) are compatible with mainstream commercial ductwork, while the floor-standing design saves ceiling space and allows placement in equipment rooms or mechanical areas.
Note: Custom configurations of the units are available upon customer request.
Dual-air duct structure: The interior of the unit is divided by baffles into two independent channels for fresh air and exhaust air, enabling cross-flow of air streams to complete the heat exchange process.
Multi-interface layout: The inlet and outlet directions for fresh/exhaust air are clearly marked to prevent on-site misconnection and ensure proper airflow organization.
Convenient maintenance: An access door is reserved on the side, allowing maintenance of internal components such as filters and fans without disassembling the entire unit.
Standardized dimension marking: Dimension labels (A, B, D, H, L, R, etc.) facilitate verification of the equipment’s footprint and duct connection sizes by engineering personnel, ensuring installation compatibility.
